Series Six features

Why carbon fibre?

Comparison with an aluminium arm tube shows much reduced colouration and exceptional internal damping. The result is less colouration and energy fed back, which lets you hear the cartridge and not the arm.

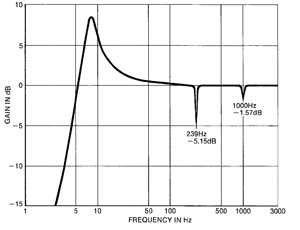

Frequency response of aluminium arm tube

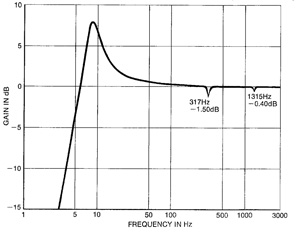

Frequency response of carbon fibre arm tube

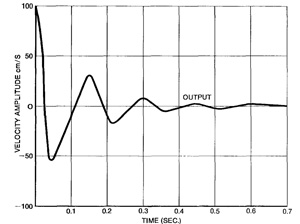

Transient response of aluminium arm tube

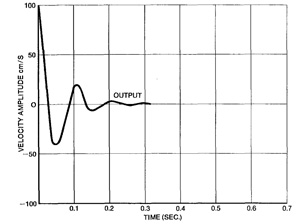

Transient response of carbon fibrearm tube

Fully polished version

Arm dimensions

	609 version (9” arm)
	‘REGA’ fitting	"Linn" fitting	610 version (10.5” arm)
Mounting distance, centres:	222mm	211mm	239mm
Effective length:	239mm	229mm	254mm
Offset angle:	23°	23°	21°
Overhang:	17.3mm	18mm	15mm
.
All versions
Platter height above arm board	25mm nominal
Weight (micrometer arm)	365g plus counterweight (110-140g)
Effictive mass	Variable from 8-22g depending on cartridge plate and counterwight
VTA range	10mm adjustment

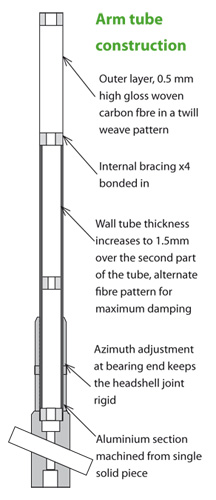

Multi-element arm tube
The arm tube is a composite of multi-lyer carbon fibre, aluminium and acetal damping rings,
At the headshell end the tube is 0.5mm thick with a diagonal crossweave, This thin section reduces transmission of vibration to a minimum.
The rest of the tube thickness is ncreased to 1.5mm with acetal damping discs bonded in.
The c/f tube is clamped into the aluminium arm body over a length of 60mm to make a very rigid joint which damps tube vibrations.
